Stainless Steel

Stainless steel dump bed for truck

Stainless steel dump beds for trucks

Industrial Truck Beds by Hilltip are handcrafted by modern-day craftsmen in Fort Wayne, Indiana. We manufacture 304 stainless steel dump beds built for commercial class 2-7 chassis.

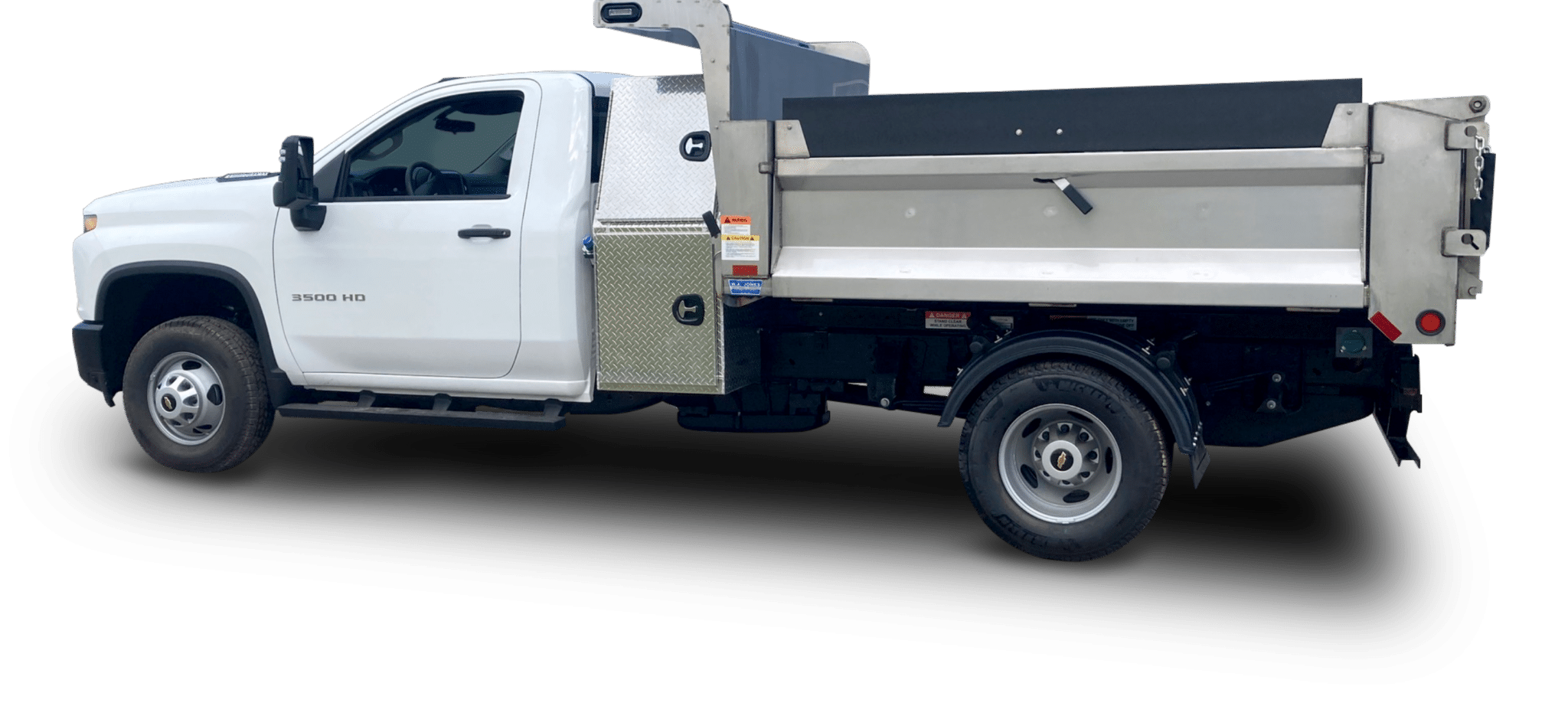

Stainless steel dump bodies and truck flatbeds

Our standard 304 stainless steel dump body built for the commercial classes 2-7 chassis includes an 11-gauge 304 stainless steel double wall side construction, slotted window and an 18” overhang cab shield. The dump body also features a tailgate construction with single handle tailgate operation, hybrid stacked structural steel understructure on 12” centers and 304 stainless steel floors. The tailgate latches and the 1” tailgate pins are made from stainless steel.

Contact our sales team to customize your 304 stainless steel dump body. We will use our tools to build a 304 stainless steel dump bed that will increase your efficiency, productivity, and profit.

Industrial Truck Beds by Hilltip are handcrafted by modern-day craftsmen in Fort Wayne, Indiana. We manufacture stainless steel Med-duty dump bodies specifically designed for class 6-7 commercial chassis.

Our standard build features 2B finish 304 Stainless steel with clean welds and heat marks. Stainless steel medium-duty dump beds come as standard with 7-gauge 304 stainless steel floor material, structural steel stacked understructure, full depth corner post, double panel tailgate, structural stainless box top rail, 18” overhung cab shield, dual control rods, and manual tailgate release. Contact our sales team to build the body that will increase efficiency, productivity, and profit. Private label builds and work-ready kits are also available.

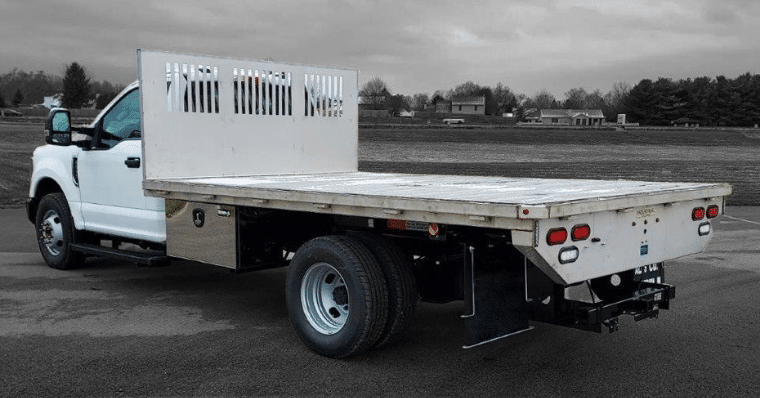

Stainless steel flatbeds built by Industrial Truck Beds by Hilltip are ready to tackle any environment and any trade. Available in all stainless steel, or hybrid with structural steel stacked understructure. Available for the class 2-8 commercial chassis. Work-ready packages are available. Contact our sales team for available options and features to increase efficiency, productivity, and profit.

Stainless steel truck bed specifications

  • Fixed Sides
  • Drop Sides
  • Sideless

LENGTHS
8′, 9′, 10′, 11′, 11’6″, 12′, 14′, 16′, 18′

CONSTRUCTION
304 stainless steel, 2B finish

FLOOR
1/8″ stainless steel (2/3 and 3/4 yard)
3/16″ stainless steel (5/7 and 6/8 yard)
AR 400/450

UNDERSTRUCTURE
(2/3 and 3/4 yard)
3″ structural channel cross members
5″ structural channel long members
(5/7 and 6/8 yard)
4″ structural channel cross members
6″ structural channel long members

SIDES
Boxed top rail
Sloped spill shield
Side board pockets

TAILGATE
Double acting
Manually controlled with a lever
Laser and water jet cut hardware
Single handle with smooth design

CAB SHIELD
Contour cut end plates
Adjustable for various mounting heights
18″ overhang – standard
Multi-height fits many chassis

OPTIONS
Air Tailgate (5/7 and 6/8 yard)
Coal / patch chute
Oval lighting in corner posts
Work ready packages
